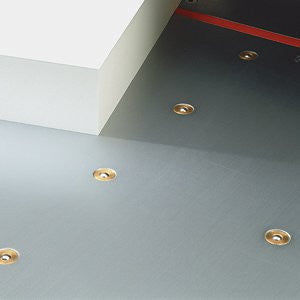

The IDEAL 7260 guillotine is the flagship of the IDEAL range and is a fully configured professional guillotine able to handle all types of work up to B2 in format. Hydraulic clamp drive offers infinite control over the stack while HSS Soligen Steel blade offers long life with a swinging cutting action. Air tables ease the movement of the stack into position by blowing air up through the stainless steel bed, while optional side tables allow stacks to be positioned to increase throughput. It adds up to a versatile guillotine to meet all cutting needs. 720 mm cutting length | electro-mechanical blade drive | hydraulic clamp drive | clamping pressure infinitely adjustable (min. 250 daN, max. 2000 daN) with optical indicator | air table on front and rear table as standard equipment | foot pedal for pre-clamping plus cutting line indicator | snap-in false clamp plate with optical indicator for delicate work | electro-mechanical backgauge drive with precision spindle for exact positioning (backgauge speed: 53 mm/sec.) | fully programmable backgauge control module | electronic hand wheel for manual backgauge positioning with infinitely variable speed control | solid steel blade carrier with adjustable guide plates on both sides | cutting blade made of high-quality HSS “Solingen steel” | swing cut for more cutting precision | optical cutting line indicator with bright and durable LEDs | durable stainless steel working surface for front and side tables | set of side tables (left and right) available at an extra cost

SCS (Safety Cutting System):
Light beam safety curtain to secure the working area on the front table; transparent safety cover on the rear table; main switch and safety lock with key; electronically controlled true two-hand operation; 24 volt controls (low voltage); patented IDEAL safety drive; automatic blade and clamp return from every position; disc brake for instant blade stop; blade changing device with covered cutting edge; blade depth adjustment from the outside of the machine; easy blade change from the front of the machine without removing covers.

ELECTRONIC CONTROL MODULE FOR THE POWER BACKGAUGE
Digital display for measurement readout in cm or inches (display accurate to 1/10 mm or 1/100 inch) | 10-button key pad for pre-setting of measurement | memory key for repeat cuts (manual) and additional automatic memory | three programmable keys for quick setting of frequently needed measurements | professional control module for storing 99 programs with up to 99 steps each (program runs automatically – with electronic cutting monitor in the program and memory mode) | up to 9 repeat cuts can be integrated into a program as one single program step | paper EJECT function with and without program mode (advancing programmable) | DELETE and INSERT mode for correcting and modifying programs | automatic measuring correction in case of backgauge displacement | push buttons for fast backgauge movement (forward and reverse) | electronic hand wheel for manual backgauge positioning with infinitely variable speed control (from very slow to very fast) | integrated calculator | “Set“ function key for reference measurement | self-diagnostic system with error indication on display

Cutting length: 720 mm
Cutting height: 80 mm
Narrow cut: 20 mm
Table depth: 720 mm
Narrow cut with false clamp installed: 90 mm
Power supply (other voltages available): 400 Volt / 50 Hz / 3~
Motor performance (input capacity): 1.5 kW
Dimensions: H 1335 x W 1305 x D 1540 mm
Dimensions with side tables: H 1335 x W 2100 x D 1600 mm
Weight: 620 kg

Price includes delivery (ground floor site)
