Ideal 5560 LT Guillotine With Air Table

Ideal


Interested in this item.

Contact us or call 0117 9231111 to discuss your requirements.


The Ideal 5560 LT has a front and back air table for easy movement of the stock. It also features a 550mm cutting width, hydraulic clamp and blade drive, plus light guards for added safety.

Product characteristics

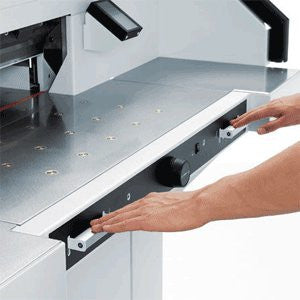

Hydraulic blade and clamp drive. Equipped with the new, patented EASY-CUT blade activating

bars for convenient and safe cutting. Comprehensive SCS safety package:   IR light beam safety

curtain on the front table; safety cover on the rear table; lockable main switch; electronically

controlled true two-hand operation; 24 volt controls (low voltage);  safety drive; automatic blade

and clamp return from every position; blade changing device with covered cutting edge; blade

depth adjustment from the outside of the  machine; easy blade and cutting stick change from

the front of the machine without removing covers. Foot pedal for pre-clamping or as mechani-

cal cutting line indicator. Optical cutting line with bright and durable LEDs.  Electric backgauge

drive  with  touch  pad  for  easy  setting,  multilingual  operator  guidance  and  digital  display.

Measurement readout in cm or inches (display accurate to 1/10 mm or 1/100 inch). 99 programs

with 99 steps in each program (up to 15 repeat cuts can be integrated into a program as one

single  program  step).  Program  runs  automatically.  10-button  key  pad  for  presetting

of measurement. Pre-programmed measurements for standard paper sizes. Programmable

keys for quick setting of frequently needed measurements. Memory key for repeat cuts. Auto-

matic SET function for  reference measurement via start button. Programmable EJECT function

- for pushing out the paper. Self-diagnostic system with error indication on display. Electronic

hand wheel for manual backgauge positioning with  infinitely variable speed  control (from very

slow  to  very  fast).  Adjusting  knob  for  infinitely  variable  clamp  pressure  (min.  200  /  max.

1100 daN) and pressure gauge. False clamp plate for delicate work. Solid front table made of

die-cast  aluminium  with  stainless  steel  worktops.  Blade  made  of  high  quality  HSS  steel.

Hydraulic swing cut for high cutting precision. Die-cast aluminium blade carrier and adjustable

blade guides. Aluminium clamp bar. Adjustable blade depth.  Sturdy cast iron machine frame.

Movable on castors. Complete with practical tool holder and stacking angle. Optional set of side

tables (left and right) available at an extra cost.
